mi48eta

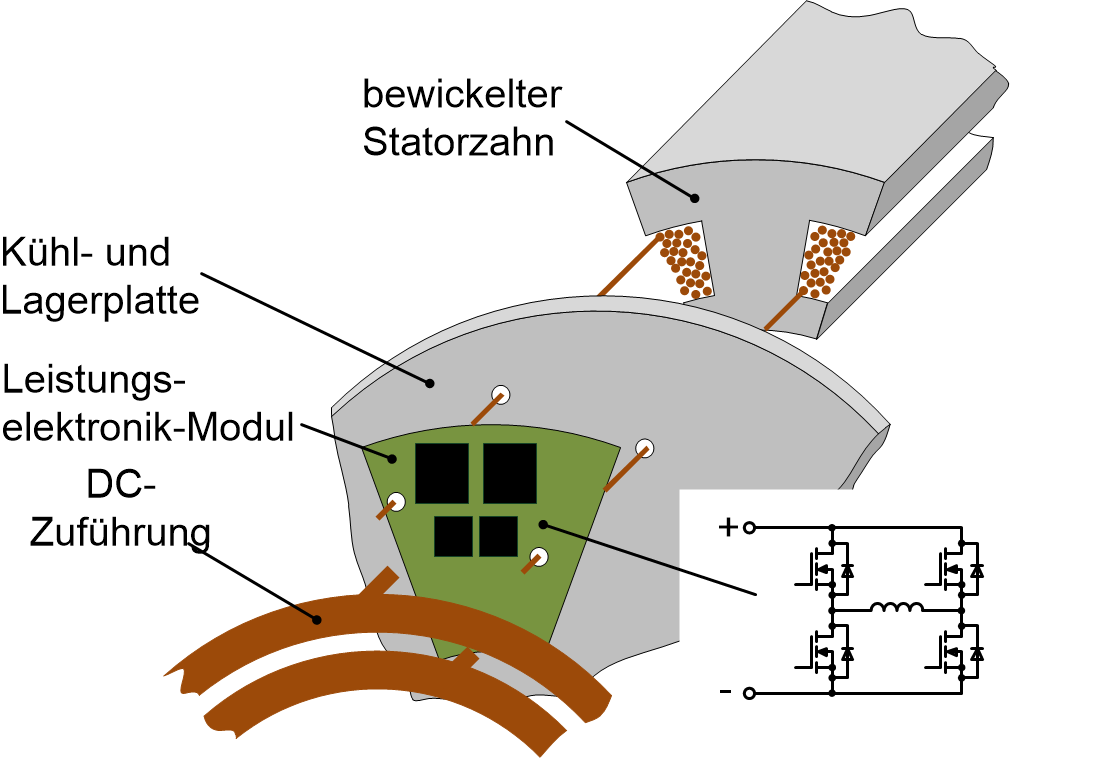

The project aims to develop an integrated 48V propulsion module (>50kW) comprising an electric motor and power electronics which is characterised by a novel design of stator: the stator of the motor is broken down into individual tooth modules, the electronic power actuator being assigned directly, both mechanically and electrically, to each one. The end result should be an initial functional model and also a demonstrator of such a propulsion module which is superior to existing solutions in respect of its overall power, power density and especially its EMC behaviour and operating characteristics. The target power specified should make this propulsion system suitable as a traction drive for smaller cars as set out in the call for applications.

Principal researcher at Esslingen University:

Prof. Dr.-Ing. Ulrich Ammann

Project duration:

01/2020 to 12/2022

Funding:

Vector Stiftung

Collaboration partner:

Universität Stuttgart, Institut für Leistungselektronik und El. Antriebe

People to contact:

Prof. Dr.-Ing. Ulrich Ammann

M.Sc. Felix Gliese
